PTO Shafts

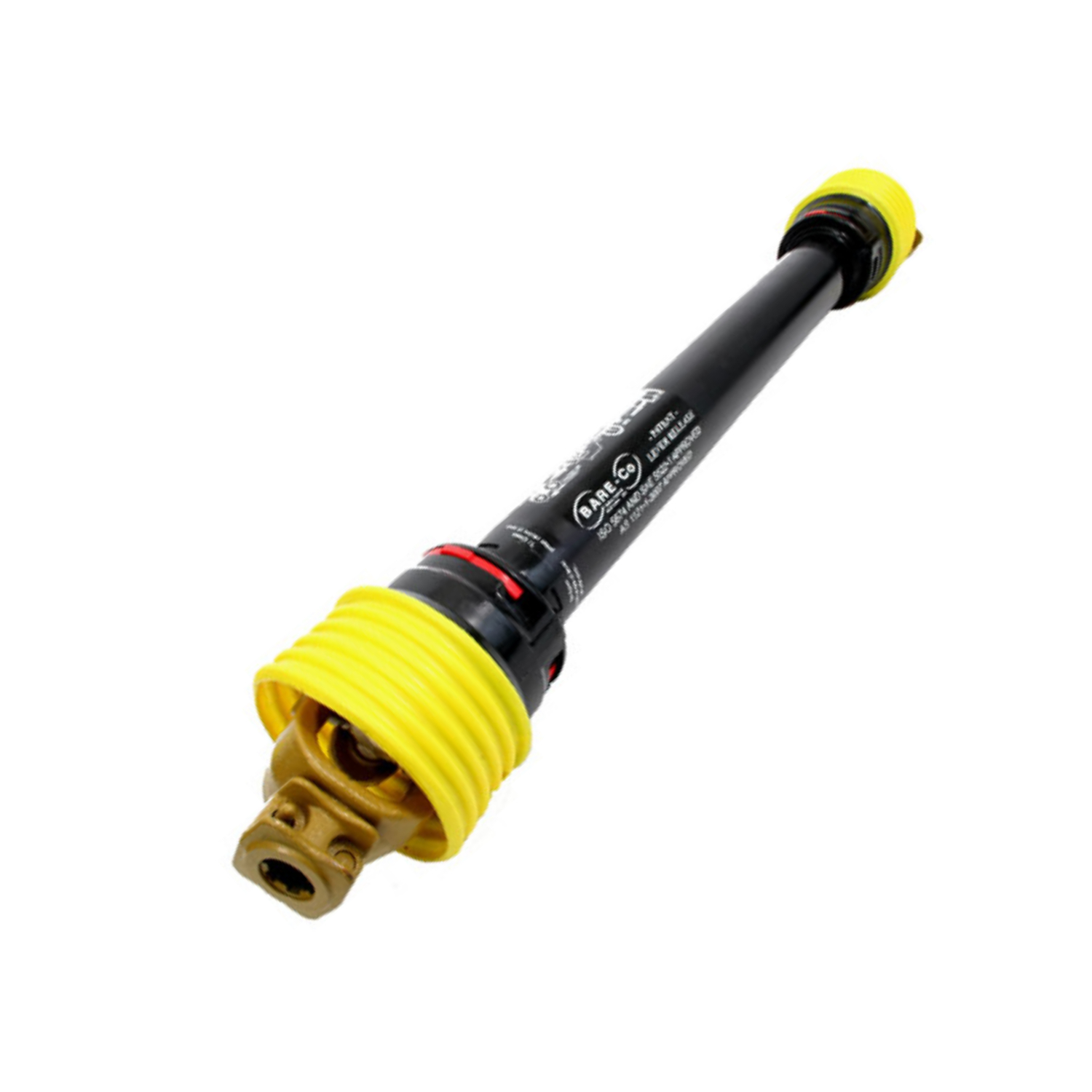

Series 8, 1 3/8″ 6 Tractor end 1 3/4″ 20 Implement end, Length: 51″- 74″

Part No. DB8105 · Overall length 51" - 74"

$464.99

Cross to cross
39" - 63"
Overall
51" - 74"
Tractor yoke
1 3/8" 6 Quick Connect

Units Sold: 8

Contact Us

Some products might be temporarily out of stock, please text the number below for stock update.

Text us @ 346-465-2689

Click here to email us

Specifications

Series 8, 1 3/8" 6 Tractor end 1 3/4" 20 Implement end, Length: 51"- 74" specifications
Part numberDB8105
Overall Length51" - 74"
Cross to Cross39" - 63"
Tractor Yoke1 3/8" 6 Quick Connect
Implement Yoke1 3/4" 20 splines clamp yoke
Series8
HP170 @ 1000 RPM
Safety ShieldYes
Shipping weight62 lbs
Box size54 × 9 × 9 in

Will it fit?

  1. Hook up the implement and set it at its shortest working position.
  2. Measure from the center of the tractor-end cross to the center of the implement-end cross.
  3. Your measurement must fall inside 39" - 63" for this shaft.
Not the right length? Use the PTO shaft selector

About this part

Bare-co Series PTO Shaft

Our PTO shafts are designed for various equipment; they come in various lengths with different style end yokes. Farm machinery operates in very strenuous conditions, which is why we offer the best PTO shafts on the market. These shafts are manufactured by BARE-Co. Bare-co has grown to be the largest manufacturer and wholesale distributor of agricultural tractor parts in the southern hemisphere.
