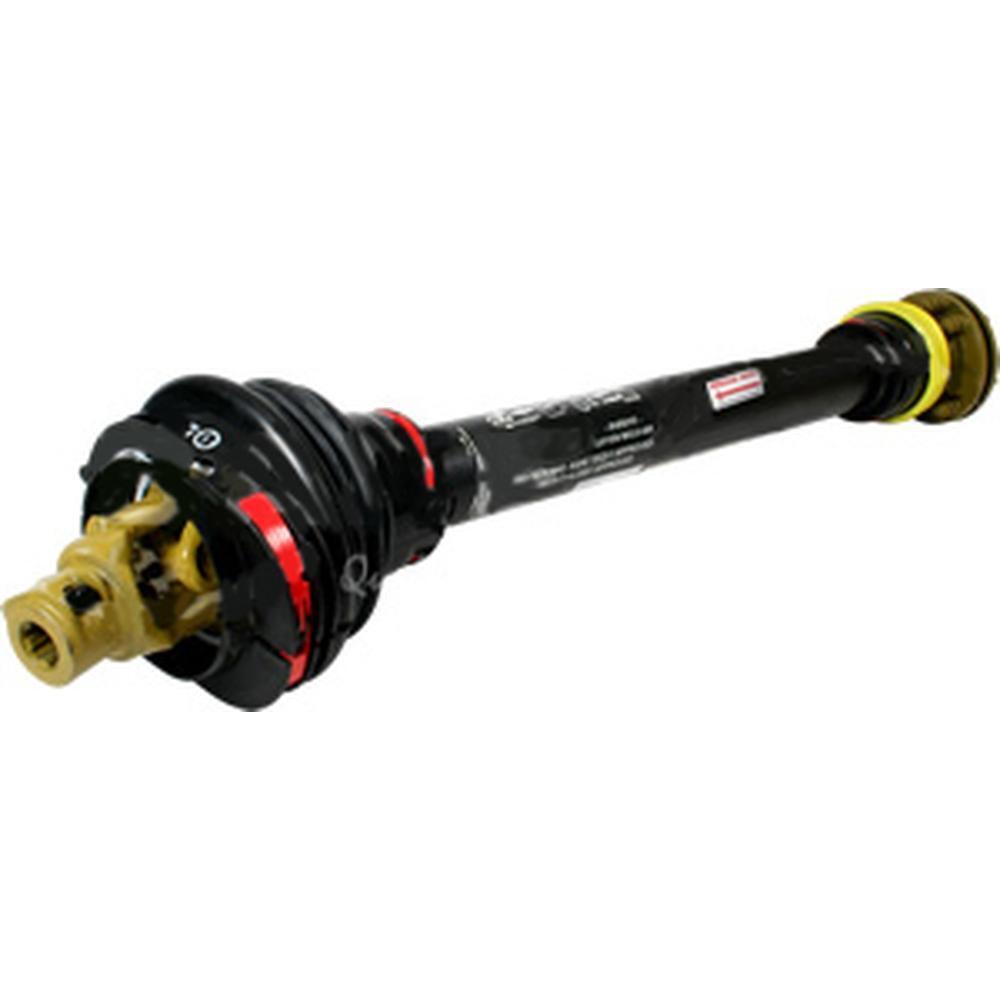

100 HP CV Shaft with Clutch 1 3/8" 6 Splines at Both EndsLength: 77" - 116" – Part # WC8150
106 CV Joint Shaft pto 125HP CV Shaft with 1 3/8" 6 Splines at Tractor End and 1 3/8" 21 at Implement EndLength: 68" - 107" $2,259.99
pto shaft Series W2400/P400 Shaft with 1 3/8 6 Splines at One EndLength: 44"- 68" $319.99
Series 864HP

100 HP CV Shaft with Clutch 1 3/8″ 6 Splines at Both EndsLength: 77″ – 116″

Part No. WC8150 · Overall length 77″ – 116″

$1,449.99

Cross to cross
63″ – 102″
Overall
77″ – 116″
Power rating
110 HP
at 540 rpm
Tractor yoke
1 3/8″ 6 Quick Connect

Units Sold: 4

Contact Us

Some products might be temporarily out of stock, please text the number below for stock update.

Text us @ 346-465-2689

Click here to email us

Specifications

100 HP CV Shaft with Clutch 1 3/8" 6 Splines at Both EndsLength: 77" - 116" specifications
Part numberWC8150
Shaft seriesSeries 8
Mfg.Bare-co
Overall Length77″ – 116″
Cross to Cross63″ – 102″
Tractor Yoke1 3/8″ 6 Quick Connect
Clutch1 3/8″ 6
Clutch Dia.8"
Series8
HP160 @ 1000 RPM
Safety ShieldYes
Power rating110 HP at 540 rpm
Shipping weight180 lbs
Box size9 × 9 × 80 in

Will it fit?

  1. Hook up the implement and set it at its shortest working position.
  2. Measure from the center of the tractor-end cross to the center of the implement-end cross.
  3. Your measurement must fall inside 63″ – 102″ for this shaft.
  4. Check your tractor's HP is at or below 110 HP at 540 rpm.
Not the right length? Use the PTO shaft selector

About this part

WARNING

80 degree (75 degree for P675 Series) Short Term Operation and Stationary.
25 degree Continuous Operation
Exceeding maximum angle will result in joint ball / socket FAILURE!
(NOT COVERED BY WARRANTY)
Tractor turning limiter should be fitted to the implement drawbar.
